Scope of application:

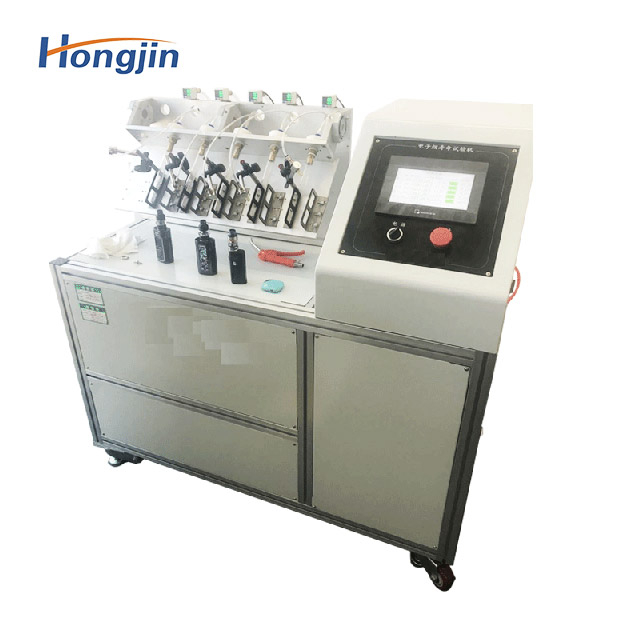

This machine is used to test the finished e-cigarette, e-cigarette battery rod, e-cigarette atomizer and so on. Can accurately control the suction capacity of each mouth, touch screen control and set related parameters. The principle is to set the suction capacity of each mouth, suction time, suction interval time, the number of cycles and other parameters, and then repeat the cycle until the battery runs out (down to a certain voltage), the smoke oil is consumed, or the number of times when the heating wire is burned off and no longer works normally, so as to determine the service life of electronic cigarettes and improve them.
Product parameter table
| Test station | Four stations, each station completely independent (customizable) |
| Inspiratory time | The value is adjustable from 0 to 10s |
| counter | The value ranges from 0 to 999999 |
| Suction mode | Piston type |
| Power source | Stepper motor + linear slide rail |
| Shut-down time | 0-100s adjustable (or) |
| Suction capacity | 0"150ml |
| Suction capacity accuracy | Plus or minus 1% |
| Display and control mode | Color touch screen +PLC |
| Shut-down time | 0-100s adjustable (or) |
| Suction capacity | 0"150ml |
| Suction capacity accuracy | Plus or minus 1% |
| Display and control mode | Color touch screen +PLC |
| Volume (W×D×H) | Approx. 1050x550x580mm |
| Power supply | AC220V, 5A |
| Approximate weight | 115 kg |
| Other functions | Can directly test pneumatic e-cigarettes, cigarette sticks, and push-button e-cigarettes with a press device |
Scope of application:
This machine is used to test the finished e-cigarette, e-cigarette battery rod, e-cigarette atomizer and so on. Can accurately control the suction capacity of each mouth, touch screen control and set related parameters. The principle is to set the suction capacity of each mouth, suction time, suction interval time, the number of cycles and other parameters, and then repeat the cycle until the battery runs out (down to a certain voltage), the smoke oil is consumed, or the number of times when the heating wire is burned off and no longer works normally, so as to determine the service life of electronic cigarettes and improve them.
Product parameter table
| Test station | Four stations, each station completely independent (customizable) |
| Inspiratory time | The value is adjustable from 0 to 10s |
| counter | The value ranges from 0 to 999999 |
| Suction mode | Piston type |
| Power source | Stepper motor + linear slide rail |
| Shut-down time | 0-100s adjustable (or) |
| Suction capacity | 0"150ml |
| Suction capacity accuracy | Plus or minus 1% |
| Display and control mode | Color touch screen +PLC |
| Shut-down time | 0-100s adjustable (or) |
| Suction capacity | 0"150ml |
| Suction capacity accuracy | Plus or minus 1% |
| Display and control mode | Color touch screen +PLC |
| Volume (W×D×H) | Approx. 1050x550x580mm |
| Power supply | AC220V, 5A |
| Approximate weight | 115 kg |
| Other functions | Can directly test pneumatic e-cigarettes, cigarette sticks, and push-button e-cigarettes with a press device |
