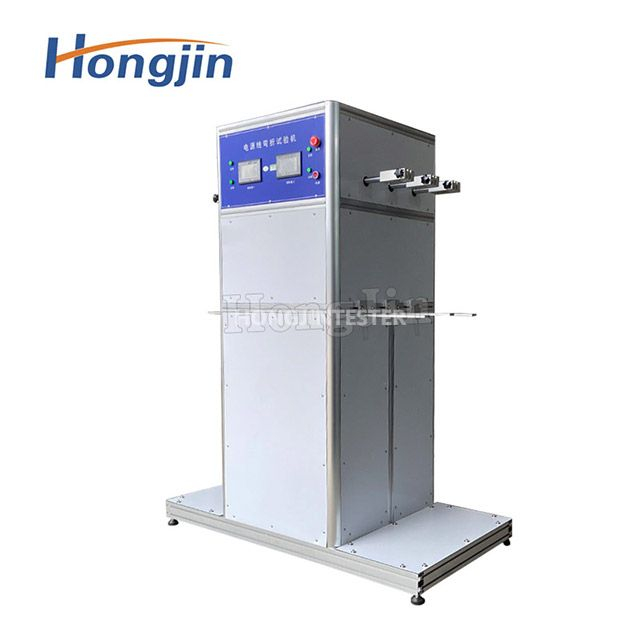

Power Cord Bending Tester

Product Introduction

Power Cord Bending Tester Charging interface Cable Bending Tester Charging Pile Tester Applicable to the "mechanical strength" of the power cables of the plugs and sockets of charging vehicles by the manufacturers related to charging piles and quality inspection departments.

EQUIPMENT CHARACTERISTICS

1) The testing machine is driven by a stepper motor system, and is set and displayed on an intelligent touch screen.The machine can be equipped with a load power supply (0-60A can be customized).

2) The testing machine can intelligently judge the short circuit, open circuit or adhesion, poor contact and other conditions of the power cord, and can automatically stop, and display the corresponding channel of the test failure, and send out sound and light alarms and character prompts to facilitate the research and development of wire faults.

3) The whole machine is composed of high-quality cold-rolled steel plate baking paint and electrophoretic aluminum alloy bracket, which is beautiful and durable.

Control System		Programmable Controller (PLC)
Screen settings and display data		Parameter monitoring, current preset, angle setting, speed preset, count setting, station selection, alarm indication and character prompt, etc.
test station		2-station program can set the experiment of single station or any station by yourself
Test rate		Can be set and intelligently adjusted 5 to 60 times/min (r.p.m)
Test bending rotation angle		Can be set and intelligently adjusted (5-720° test angle can be preset)
0counter		0~9999999 times can be preset, with power failure memory function
Weight and material		20N, 25N, 50N, 75N, 100N weights, 2 sets each, the weights are made of SUS304# stainless steel
Optional test resistive/inductive load		0-60A can be manually adjusted
Test voltage		ACO~250V continuously adjustable, 31/2LED digital display, precision 0.5
Test current		ACO~60A continuously adjustable, 31/2LED digital display, precision 0.5
An external power supply can be used to conduct experiments on the connection parts of finished electricalappliances (external variable frequency power supply is not included, which needs to be purchased)
Comes with a smart ammeter, which can set the upper and lower limit numbers, which is convenient for judging the short circuit,open circuit and adhesion of the power line under test, and can cut off the counter of the current station
External band pointer showing bend angle
1 set of fixing brackets with wires, easy to install
voltage		AC220V±5%、50Hz10A
