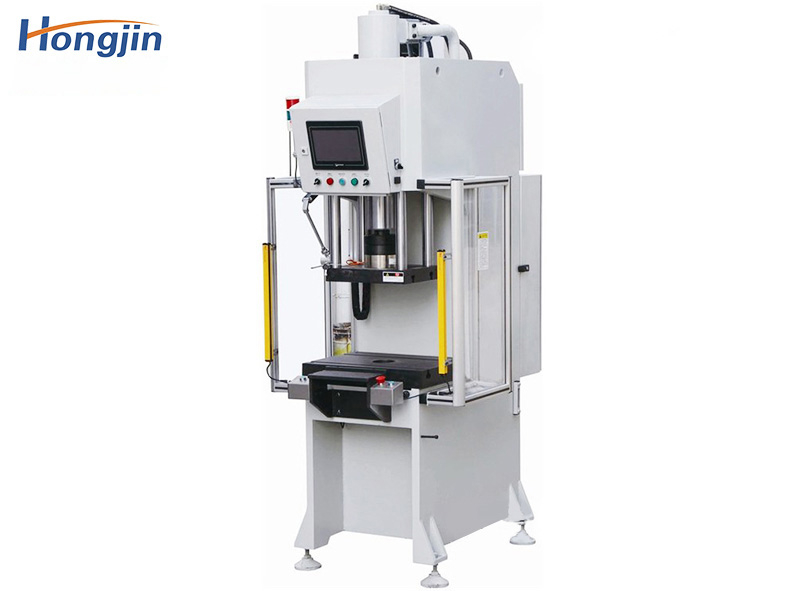

In the process of pressing the product, the current pressing position and pressing force are displayed in real time, and it can timely and accurately judge whether the amount of interference is appropriate. The press can only be pressed in but cannot be tested, and the universal testing machine has low efficiency and cannot be mass-produced. The overall structure of the equipment has been strengthened by design, and the rigidity is far beyond the standard of ordinary presses, and the overall dust-proof design is adopted.
Features:
1. The overall force measurement accuracy of the equipment is 0.05% of the full scale, and the display unit is 0.01KN;
2. The AD sampling speed of the system to the force sensor is 300 times/second;
3. The small display unit of the displacement sensor is 0.01MM, and the error is 0.015% of the full scale. Repeat positioning accuracy is within 0.03 MM;
4. The parallel accuracy of the upper worktable and the lower worktable is within 0.10MM;
5. After the frame is combined with the work surface, the rigidity of the opening of the equipment shall not be less than 200KN/MM;
6. The temperature rise of the equipment should not exceed 20℃ in 24 hours of continuous operation. When the ambient temperature is 40°C, the oil temperature will not exceed 65°C.
In the process of pressing the product, the current pressing position and pressing force are displayed in real time, and it can timely and accurately judge whether the amount of interference is appropriate. The press can only be pressed in but cannot be tested, and the universal testing machine has low efficiency and cannot be mass-produced. The overall structure of the equipment has been strengthened by design, and the rigidity is far beyond the standard of ordinary presses, and the overall dust-proof design is adopted.
Features:
1. The overall force measurement accuracy of the equipment is 0.05% of the full scale, and the display unit is 0.01KN;
2. The AD sampling speed of the system to the force sensor is 300 times/second;
3. The small display unit of the displacement sensor is 0.01MM, and the error is 0.015% of the full scale. Repeat positioning accuracy is within 0.03 MM;
4. The parallel accuracy of the upper worktable and the lower worktable is within 0.10MM;
5. After the frame is combined with the work surface, the rigidity of the opening of the equipment shall not be less than 200KN/MM;
6. The temperature rise of the equipment should not exceed 20℃ in 24 hours of continuous operation. When the ambient temperature is 40°C, the oil temperature will not exceed 65°C.
